Name: Shimpo Vertical Test Stand (110 Lb) Low Or High Speed [FGS-100E]
SKU: -397487812683060218
Availability: InStock

Sale!

Shimpo Vertical Test Stand (110 Lb) Low Or High Speed [FGS-100E]

Shimpo Vertical Test Stand (110 Lb) Low Or High Speed [FGS-100E] - Image 2

Shimpo Vertical Test Stand (110 Lb) Low Or High Speed [FGS-100E] - Image 3

Original price was: $339.00.Current price is: $97.99.

Model

Clear

SKU: -397487812683060218 Categories: Accessories, Industrial Equipment

Nature-friendly materials, for a better planet.
Shop with confidence, we guarantee quality.
Quick responses, top-notch service.
Shop with Confidence, Pay Safely

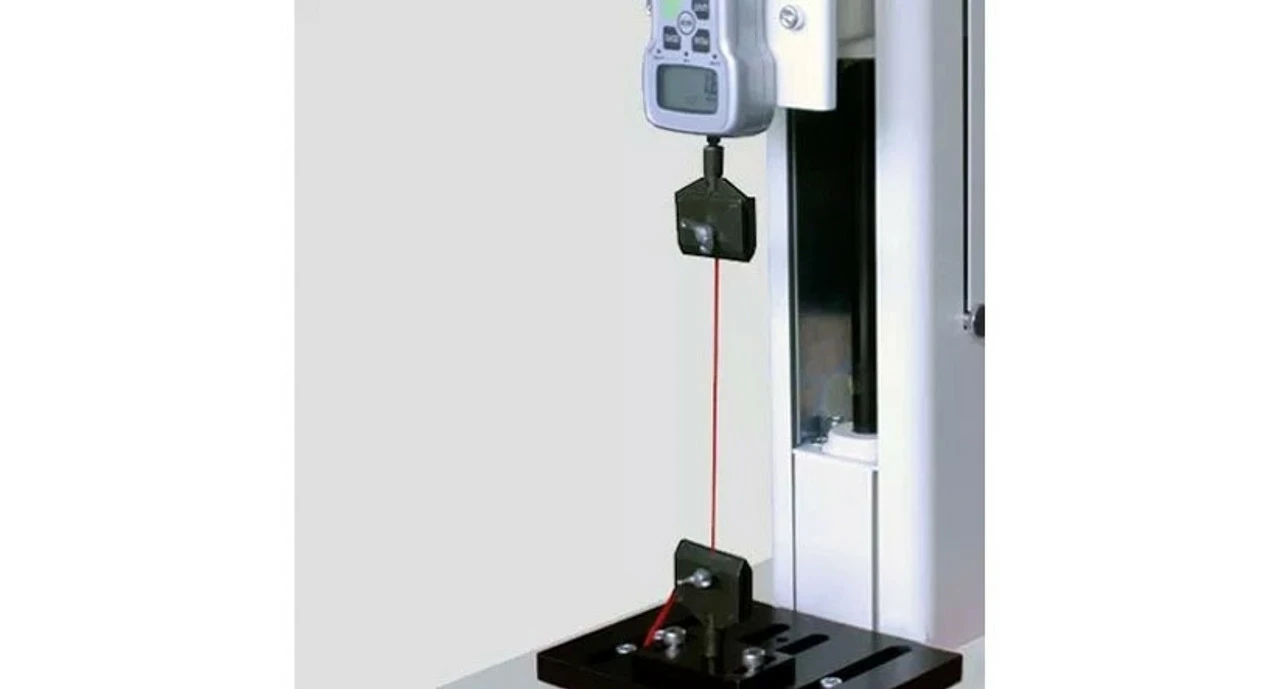

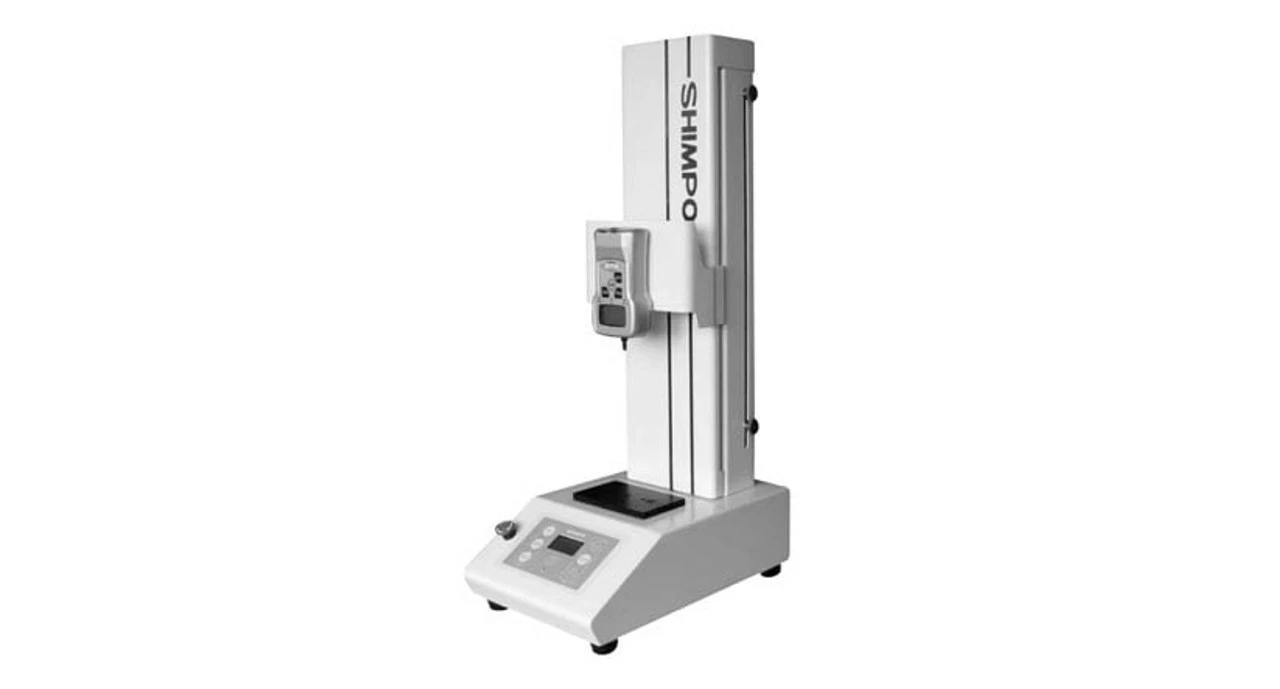

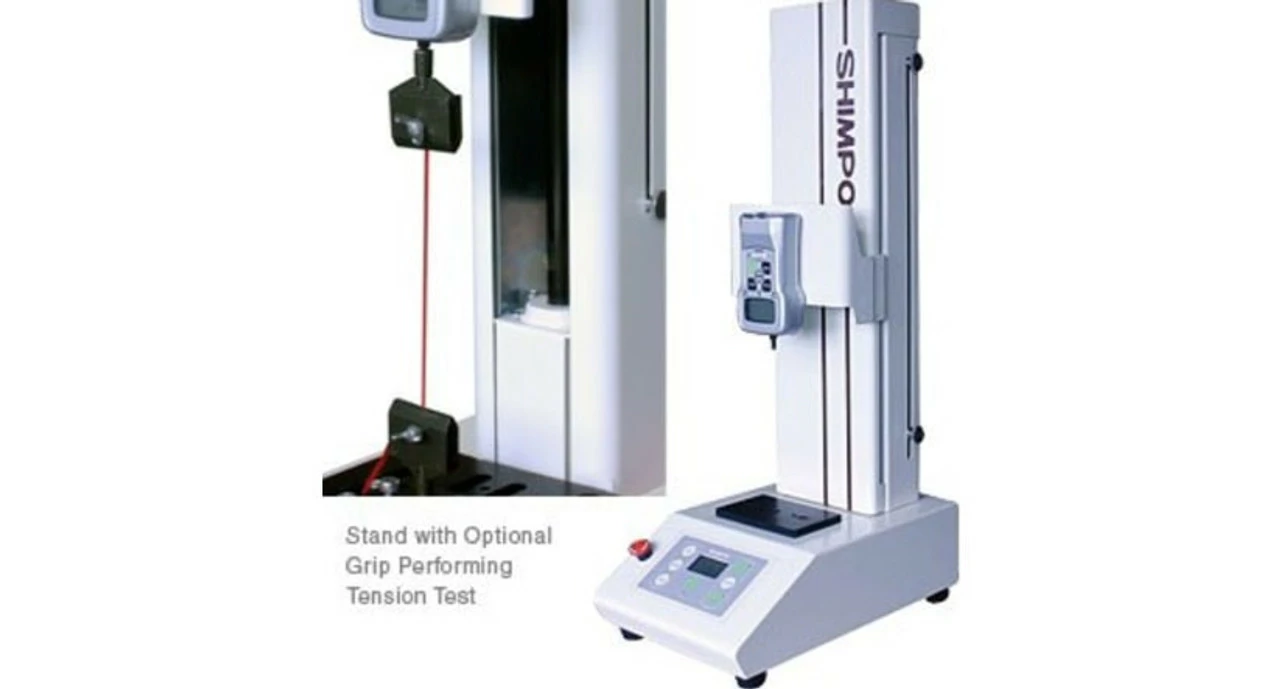

The Shimpo Vertical Test Stand is a durable, accurate way to test push/ pull forces on the production line.

The Shimpo Vertical Test Stand will create a complete force measurement system when used in conjunction with a force gauge. To get even more functionality out of this test stand, pair it with a Shimpo FGV Series Force Gauge for overload sensing. An intuitive, seven-button keypad will mean less time spent on training and more time utilizing the test stand on the production line.

This motorized test stand is available in either a low or high speed model, based on the rate of testing needed. All other specifications are the same between the low and high speed models of the Shimpo Vertical Test Stand.

For quality and durability, look no further than the Shimpo Vertical Test Stand.

Features

Two models to choose from – low or high speed
Four modes of operation – manual, job, single cycle, continuous
Reprogrammable high or low stop limits
Overload protection when used with a Shimpo FGV Force Gauge
Simple-to-use seven button keypad and emergency stop button
LCD displays movement speed, mode, or alarms
Steel construction offers durability on the production line

Dimensions	8.7″ W x 14.1″ D x 26.8″ H
Display	LCD three-digit display
Capacity	112.4 lbf (50kgf)
Travel speed	Low Speed [FGS-100E-L]: 0.23 – 7.00″/min (6 – 180 mm/min) High Speed [FGS-100E-H]: 0.78 – 23.60″/min (20 – 600 mm/min)
Speed accuracy	± 5%
Stroke	15.75″
Temperature limits	32° – 113° F (0° – 45° C)
Power	100 – 230VAC ± 10%
Weight	40.1 lbs
Included accessories	FGV overload set point communication cable
Warranty	2-year
