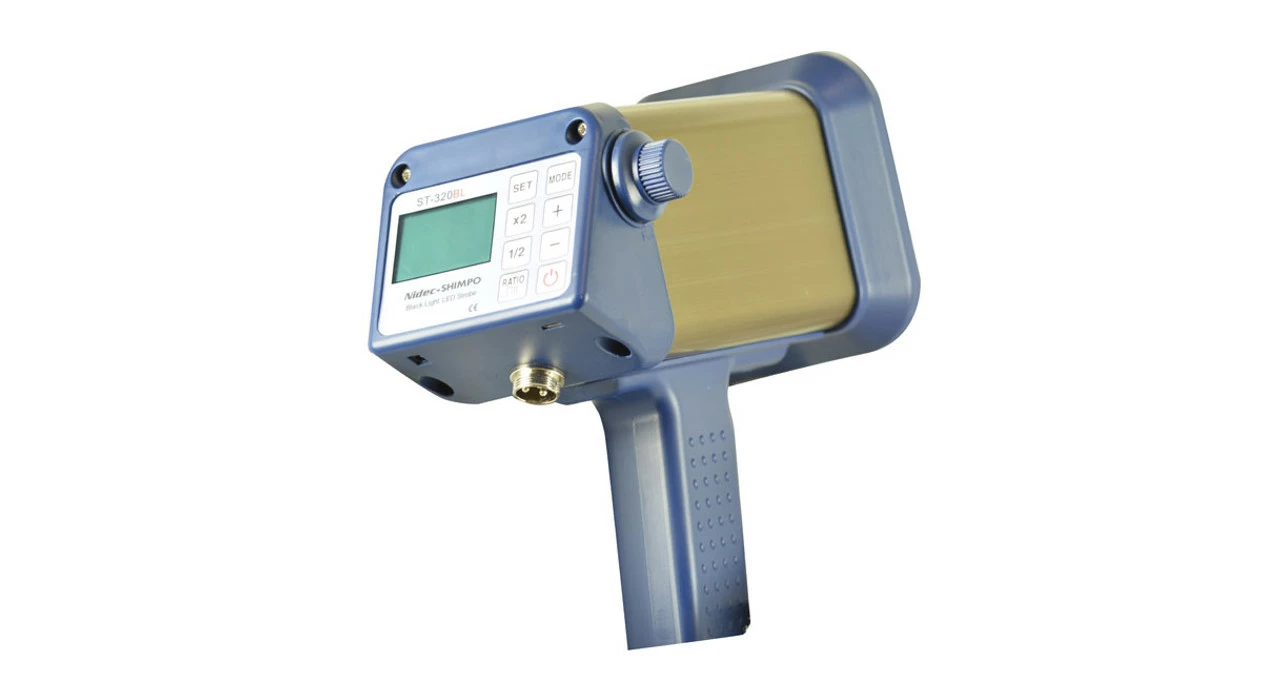

Shimpo ST-320BL-1 Blacklight LED Stroboscope, 120 VAC Or 230 VAC

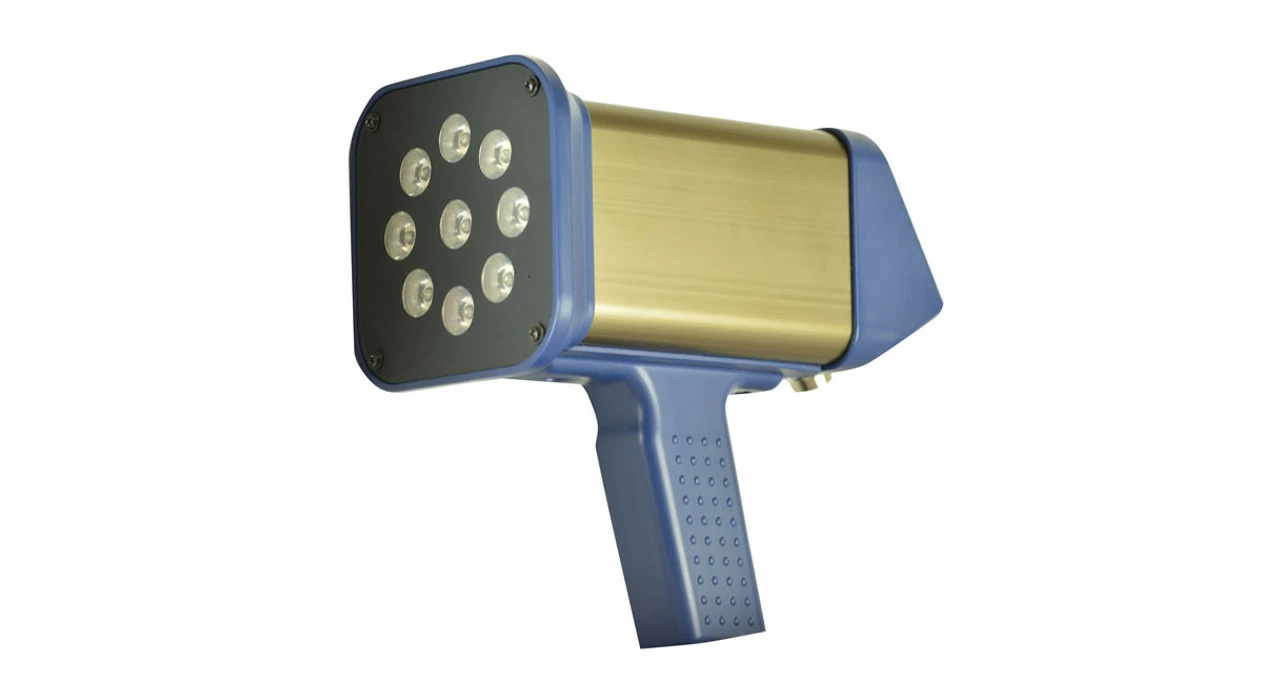

Shimpo ST-320BL-1 Blacklight LED Stroboscope, 120 VAC Or 230 VAC - Image 2

Original price was: $369.00.Current price is: $95.99.

SKU: -2655260593697876282 Categories: Accessories, Industrial Equipment

Nature-friendly materials, for a better planet.
Shop with confidence, we guarantee quality.
Quick responses, top-notch service.
Shop with Confidence, Pay Safely

Utilizing the power of bright high-powered black light CREE LED lamps, the Shimpo ST-320BL-1 Blacklight LED Stroboscope is ideal for UV ink printing applications. The ST-320BL’s LED array delivers a bright, stable strobe light over a wide measurement range and boasts a lifetime that far exceeds comparative xenon lit stroboscopes. The unit can work off user-adjusted flash frequency or from a remote sensor’s signal which will automatically adjust to corresponding process fluctuations.

The Shimpo ST-320BL-1 Blacklight LED Stroboscope is a must-have tool for all your ergonomic assessment jobs.

Features

Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost all high speed applications
Long-life Black Light LED operation for UV ink applications
Adjustable Flash Pulse duration delivers sharper images for precision inspection
Phase Shift Advances for viewing gear teeth, cutting surfaces, repeats, or drifting images
Input sensor trigger function allows process machinery to control the unit’s flash rate
Delay time adjustment combined with leading or trailing edge activation simplifies unit setup
x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning
1/4-20 UNC connection for permanent mount applications (remove trigger handle)

Flash rate range	60 to 120,000 FPM; 1-2000 Hz
Accuracy	0.01% ±1 digit of F.S. @ 77°F (25°C)
Lamp Lifetime	Approx. 3 – 5 years depending on usage
Display	Backlit LCD
Flash duration	0.1°- 2.5°
Phase shift	0-359°
Power requirement	100-120 VAC 230V VAC
Input signal	12 V Pulse Input; 3 pin M-12
Input signal range	60-120,000 FPM (1-2000 Hz)
Input pulse range	Over 50 µs
Input signal flash delay	0-999 ms; 0-359°
