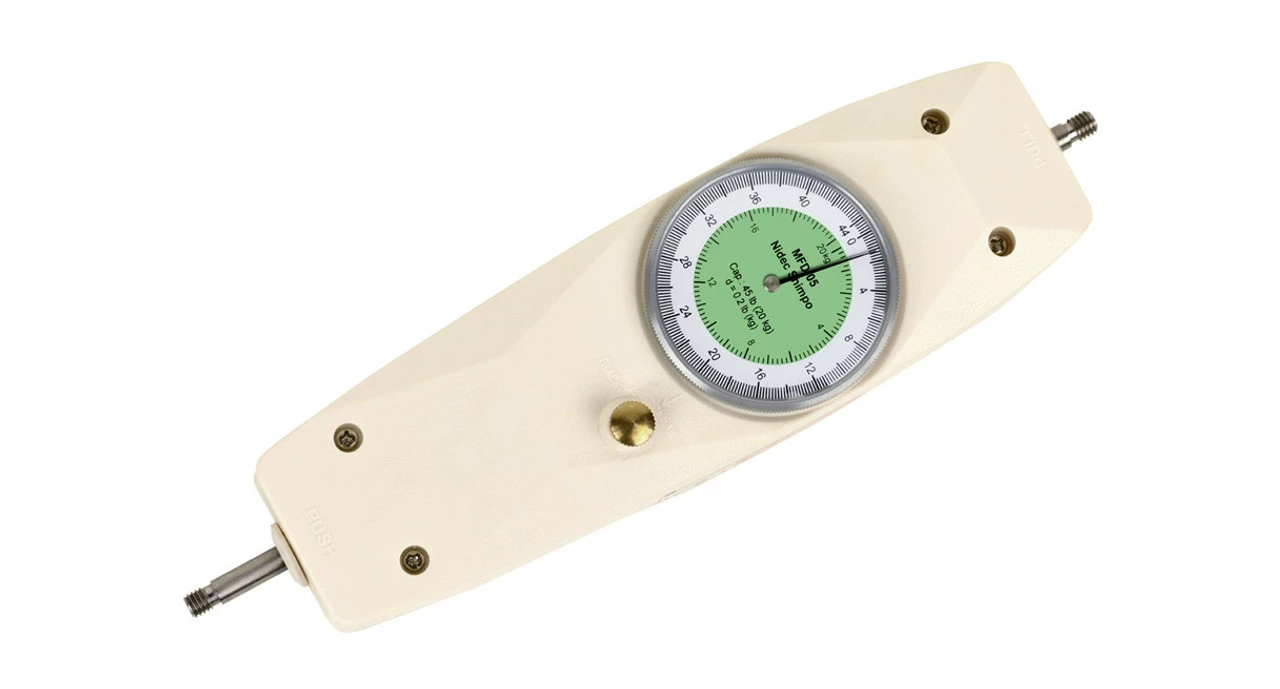

The Shimpo MFD-02 Dual Scale Mechanical Force Gauge is easy to use, economical, and offers users dual kg/lb scales. The unit’s peak force operation mode features an easy push-button reset, which is especially helpful for repetitive testing, such as in an assembly line or in quality control situations. When you need a force gauge that delivers accurate measurements, look no further than Shimpo.
Features
- Measures compression forces and tension with only one gauge
- Rear threaded inserts makes it easy to mount to test stands
- Economical mechanical force gauges with dual kg/lb scales are excellent for push/pull force testing in manufacturing, maintenance, inspection, and material testing applications
- Dual kilogram (kg) and pound (lb) units allow for flexible usage in testing to multiple standards
- Precision gauge movement delivers a quick response for instantaneous analysis
- Dial indicator allows viewing of force changes as they occur, reducing the chance for parallax errors
- Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
- Designed for handheld use, but may also be used with the optional handle – great for loads over 15 pounds
| Accuracy | ±1% F.S. |
| Dial graduations | 0.02 lb (0.02 kg) |
| Display | Analog 2″ (50 mm) diameter dial; rotatable 360° for taring purposes |
| Live/peak mode | Selectable |
| Needle update | Immediate |
| Threaded insert | 4 on back for mounting inserts |
| Overload capacity | 120% |
| Weight | 1.25 lb |
| Model | 4.5lb, 110lb, 22lb, 11lb, 45lb |
|---|---|
| NIST Calibration | NIST calibration, Standard factory calibration |
