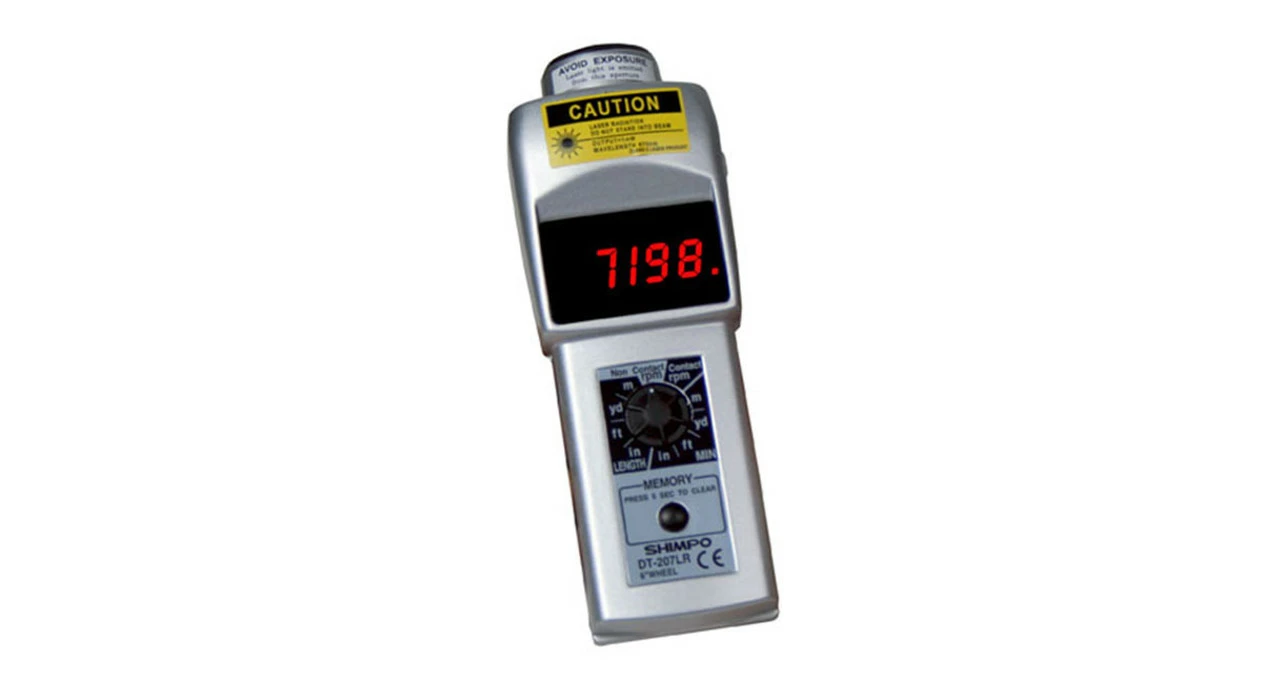

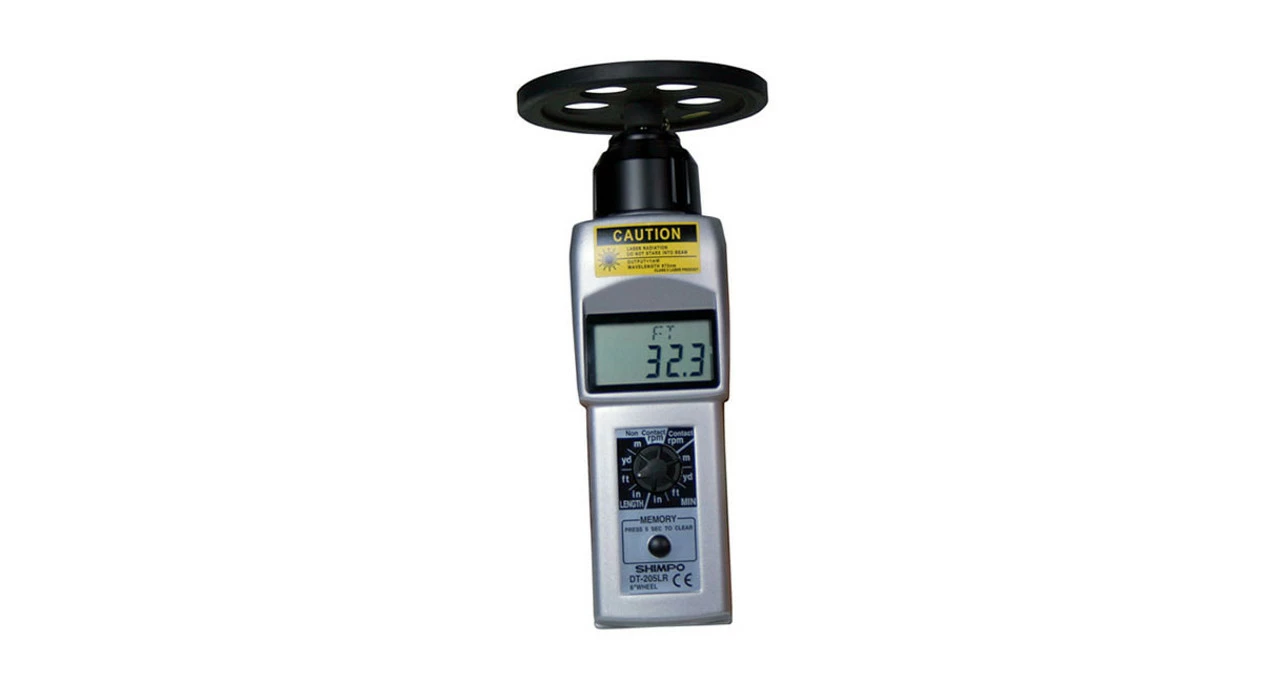

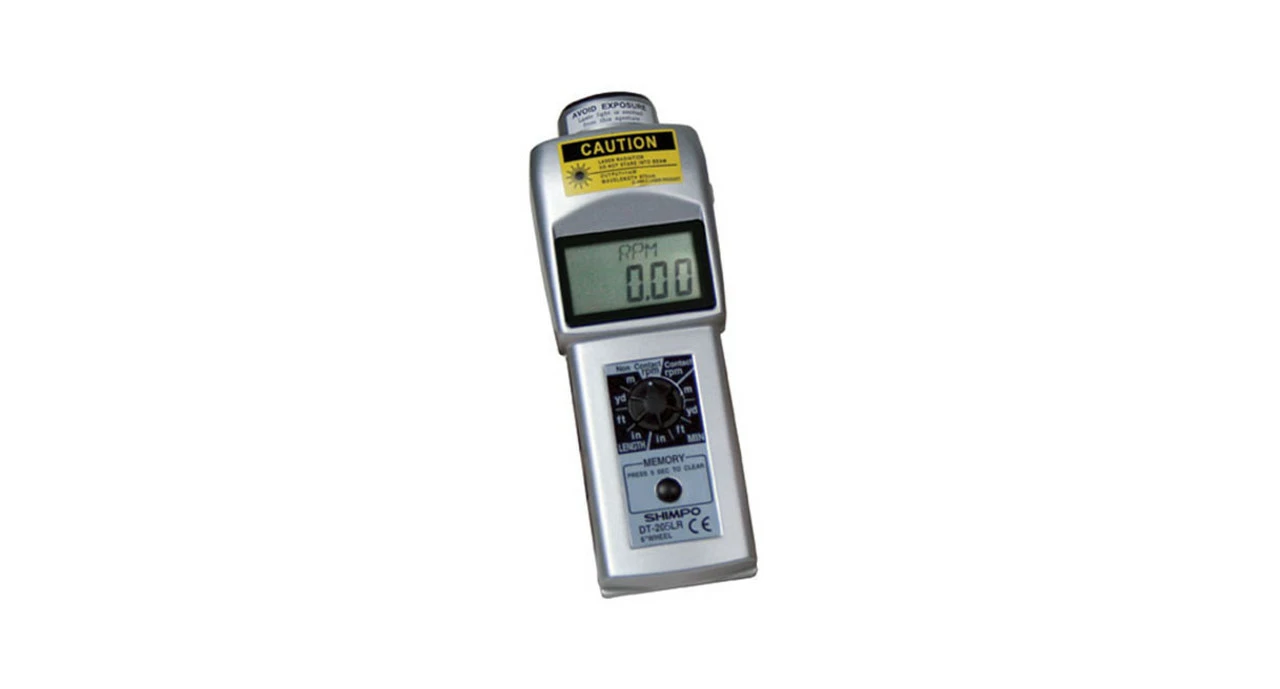

Name: Shimpo LCD Or LED Display Contact/Non-Contact Tachometer With 6" Or 12" Measuring Wheel [DT-205LR DT-207LR]
SKU: -1881860324016471757
Availability: InStock

Sale!

Shimpo LCD Or LED Display Contact/Non-Contact Tachometer With 6" Or 12" Measuring Wheel [DT-205LR DT-207LR]

Shimpo LCD Or LED Display Contact/Non-Contact Tachometer With 6" Or 12" Measuring Wheel [DT-205LR DT-207LR] - Image 2

Shimpo LCD Or LED Display Contact/Non-Contact Tachometer With 6" Or 12" Measuring Wheel [DT-205LR DT-207LR] - Image 3

Shimpo LCD Or LED Display Contact/Non-Contact Tachometer With 6" Or 12" Measuring Wheel [DT-205LR DT-207LR] - Image 4

Shimpo LCD Or LED Display Contact/Non-Contact Tachometer With 6" Or 12" Measuring Wheel [DT-205LR DT-207LR] - Image 5

Shimpo LCD Or LED Display Contact/Non-Contact Tachometer With 6" Or 12" Measuring Wheel [DT-205LR DT-207LR] - Image 6

Original price was: $289.75.Current price is: $95.99.

Display

Measuring Wheel

Clear

SKU: -1881860324016471757 Categories: Accessories, Industrial Equipment

Nature-friendly materials, for a better planet.
Shop with confidence, we guarantee quality.
Quick responses, top-notch service.
Shop with Confidence, Pay Safely

The Shimpo LCD or LED Display Contact/Non-Contact Tachometer combines laser precision with durable construction for a quality tool that will last. Take both contact and non-contact RPM measurements in the field, with a range of up to 20 feet for non-contact applications.

The Shimpo Tachometer is offered with your choice of either an LCD or LED display. The LCD display shows black numbering on a lighter background, while the LED displays vivid red numbering on a black background.

This handheld tachometer features Shimpo’s rugged die-cast aluminum housing to stand up to even the toughest of work conditions. With a 25-40 hour continuous-use battery life, you won’t be concerned about any downtime in the field.

The Shimpo LCD or LED Display Contact/Non-Contact Tachometer with 6″ or 12″ Circumference Measuring Wheel [DT-205LR DT-207LR] offers precision you can rely on.

Features

Unmatched accuracy measuring speeds up to 99,999 rpm
Die-cast aluminum housing offers durability no matter the conditions
Memory capacity includes last, max, min, plus 10 more measurements
Handheld, ergonomic design for field work
LCD display or bright red LED display

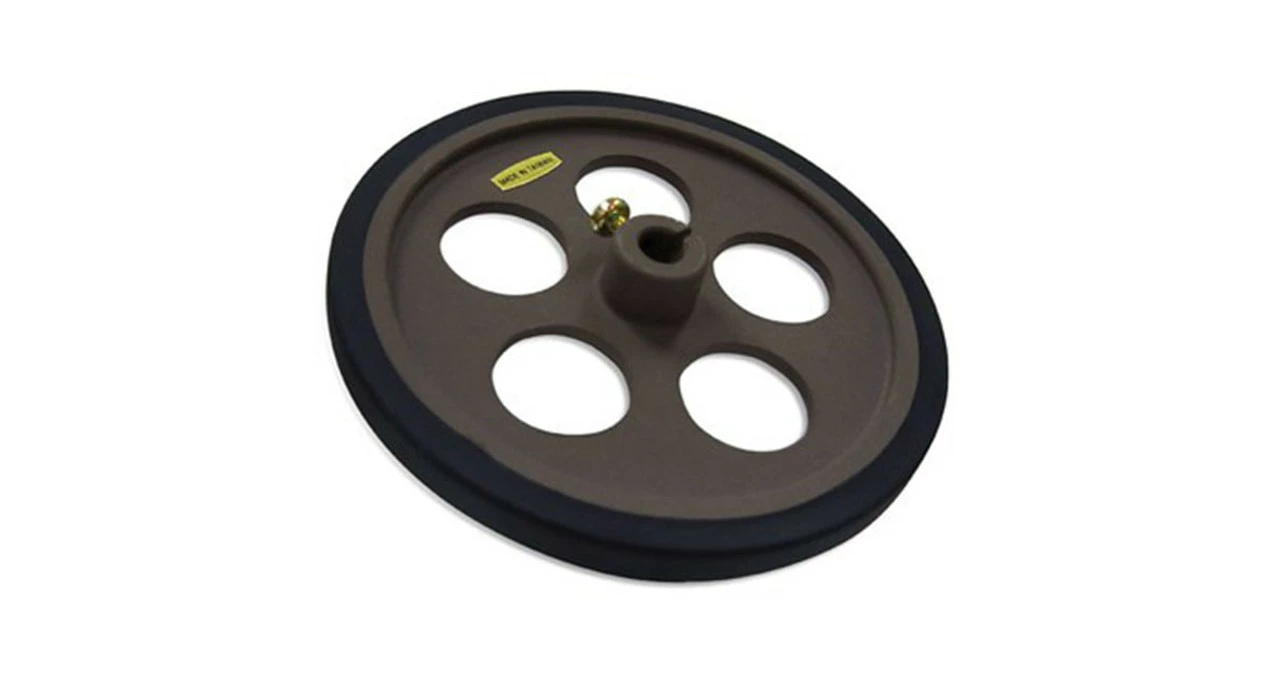

6″ or 12″ circumference measuring wheel
NIST Certificate included for quality assurance

Dimensions	6.6” L (167.5mm) x 2.4” W (60mm) x 1.8” H (46mm) Length with contact adapter: 8.25″ L (209mm)
Display range	6 – 99,999 rpm
Accuracy	±1 rpm: 6 – 8,300 rpm ±2 rpm: 8,300 – 25,000 rpm ±0.006% of reading ±1 digit (±6 rpm max.) 25,000 – 99,999 rpm
Measuring units	RPM (with contact adapter) for YPM, mPM, FPM, IPM and length (yrd, m, ft, and in)
Memory	Stores 13 readings, retained for 5 minutes Last, max, min, and 10 extra measurements
Update time	1 second
Laser sensing distance	1” (25.4mm) to 20′ (6m)
Display	LCD: 5 digit, 0.47″ H (12 mm) LED: 5 digit, 0.4″ H (10 mm)
Power	2 AA 1.5V batteries
Battery life	25 – 40 hrs
Temperature limits	32° – 113° F (0° – 45° C)
Materials	Die-cast aluminum housing
Approvals	CE Mark
Warranty	2 years
Included accessories	Two AA batteries, reflective tape, two cone adapters, funnel adapter, 3.5” extension shaft, carrying case, NIST certificate, master wheel (6” or 12” cir.), and contact adapter
