Original price was: $394.00.$95.99Current price is: $95.99.
- Nature-friendly materials, for a better planet.
- Shop with confidence, we guarantee quality.
- Quick responses, top-notch service.
- Shop with Confidence, Pay Safely

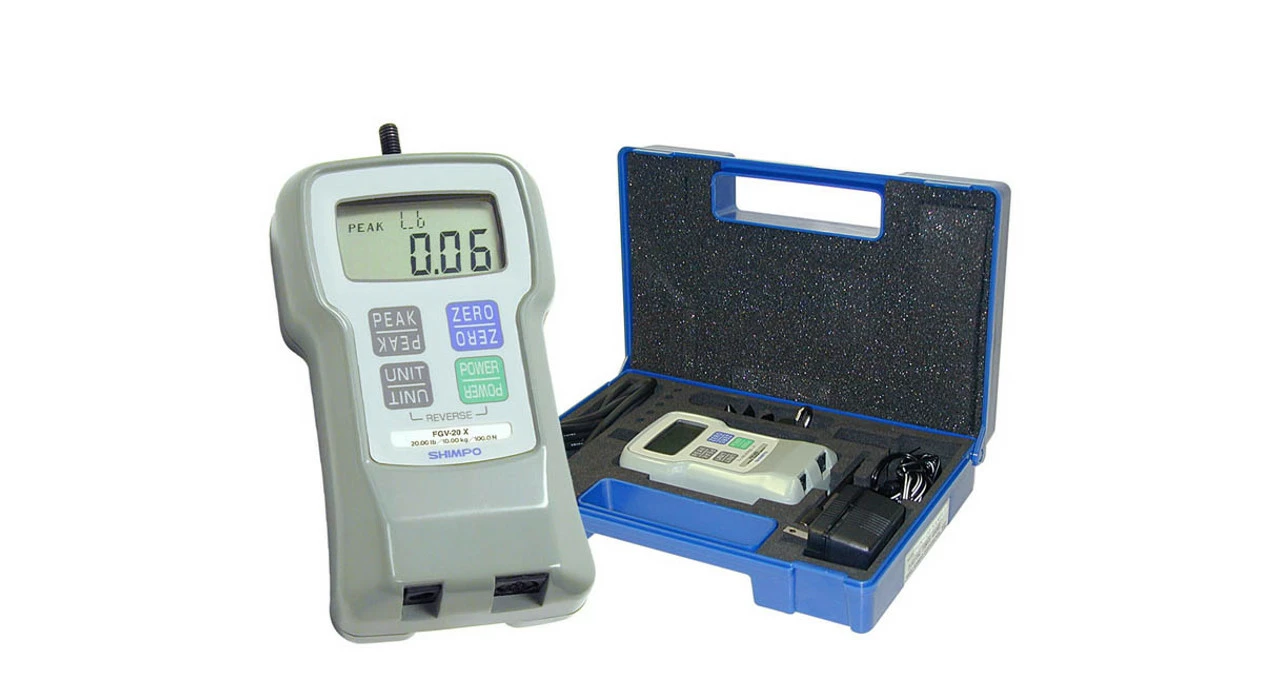

Shimpo’s FGV-XY Dart 2.0 force gauge takes the well-known design of their Dart series force gauges and adds in the extensive features of their DFS series.
With the addition of a new USB interface for computer data recording, this is a complete force testing solution for countless applications, and is suitable for testing tension and compression forces up to 200 pounds.

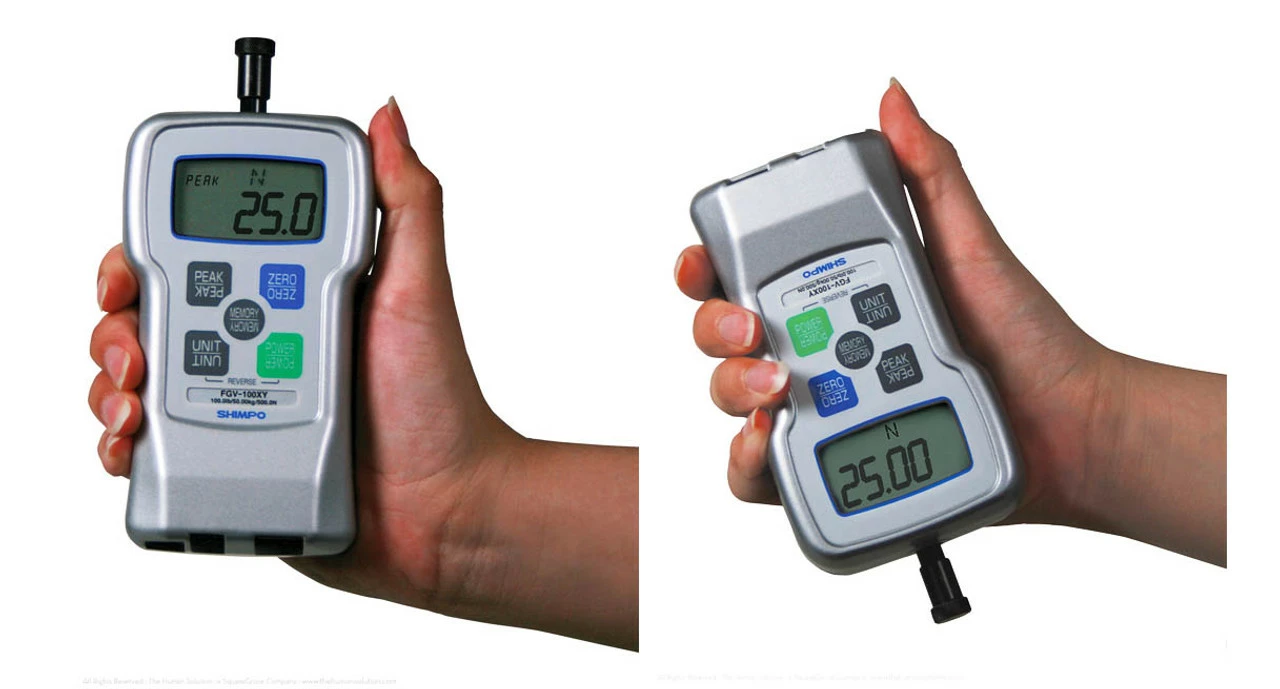

This force gauge is ergonomically designed and ideal for uses like incoming quality inspection, finished goods testing, and research and development. It has onboard calculating ability for easy access to maximum, minimum, average, and standard deviation data. With 1000 point memory, data may be exported in real time or after testing is finished. In addition to USB, this unit has RS-232C and analog outputs when you need them.
Features
- Quicker sampling for more accurate results
- High accuracy for strict tolerances
- 3 different outputs for data collection allows for maximum flexibility
- Higher overload protection lowers cost of maintenance
- Selectable auto-shutoff prolongs battery life
- Small size and ergonomic design added comfort
- Onboard statistical calculation and free data logging software
| Accuracy | ±0.2% F.S. |
| Display | 4-Digit LCD, 0.5” (12 mm) high, Units / 0.29” (7 mm). Reversible by the push of a button. Minus sign for tension |
| Display Update | 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec |
| Sampling Rate | 1000 Hz |
| Overload | 200% of F.S. (200 lb.: 150% F.S.) |
| Power | Rechargeable Ni-MH battery or universal AC adapter/charger (100-240VAC, 50-60Hz) |
| Output | Analog: ±1 VDC (through a 12 bit D/A converter) RS232C: Baud rate (19200, 9600, 4800, 2400 bps selectable), commands control USB: Allows communication between FGV-XY and Windows PC Software with TORIEMON-USB via USB cable (included) Overload Comparator: Open-collector output (Max DC30V/5mA) |
| Auto Power Shut-Off | Yes (not active if adapter/charge is in use) |
| Battery Charge | 12 hours (when fully charged) |
| Recharge Time | Approximately 18 hours when fully discharged |
| Temperature Range | 32° – 104° F (0° – 40° C) |
| Dimensions | 5.8” x 3” x 1.5” (147 x 75 x 38 mm) |
| Product Weight | Approx. 1 lb (450 g); FGV-200XY Approx. 1.1 lb (500 g) |
| Package Weight | Approx. 2.4 lb ( 1.09 kg) for 0.5 lb and 1 lb ranges; 2.6 lb (1.12 kg) for 2 to 100 lb ranges; 2.75 lb (1.25 kg) for 200 lb range. |
| Certification | CE, RoHS |
| Warranty | 2 Years |
| Included Accessories | AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable |
| Model | 1000 lb/ 453 kg capacity, 500 lb/ 250 kg capacity, 0.5 lb/ 200 g capacity, 20 lb/ 10 kg capactity, 50 lb/ 20 kg capacity, FGV-100XY: 100 lb/ 50 kg capacity, 1 lb/ 500 g capacity, 10 lb/ 5 kg capacity, FGV-200XY: 200 lb/ 100 kg capacity, 2 lb/ 1000 g capacity, 5 lb/ 2 kg capacity |
|---|---|
| NIST Calibration | NIST calibration, Standard factory calibration |
