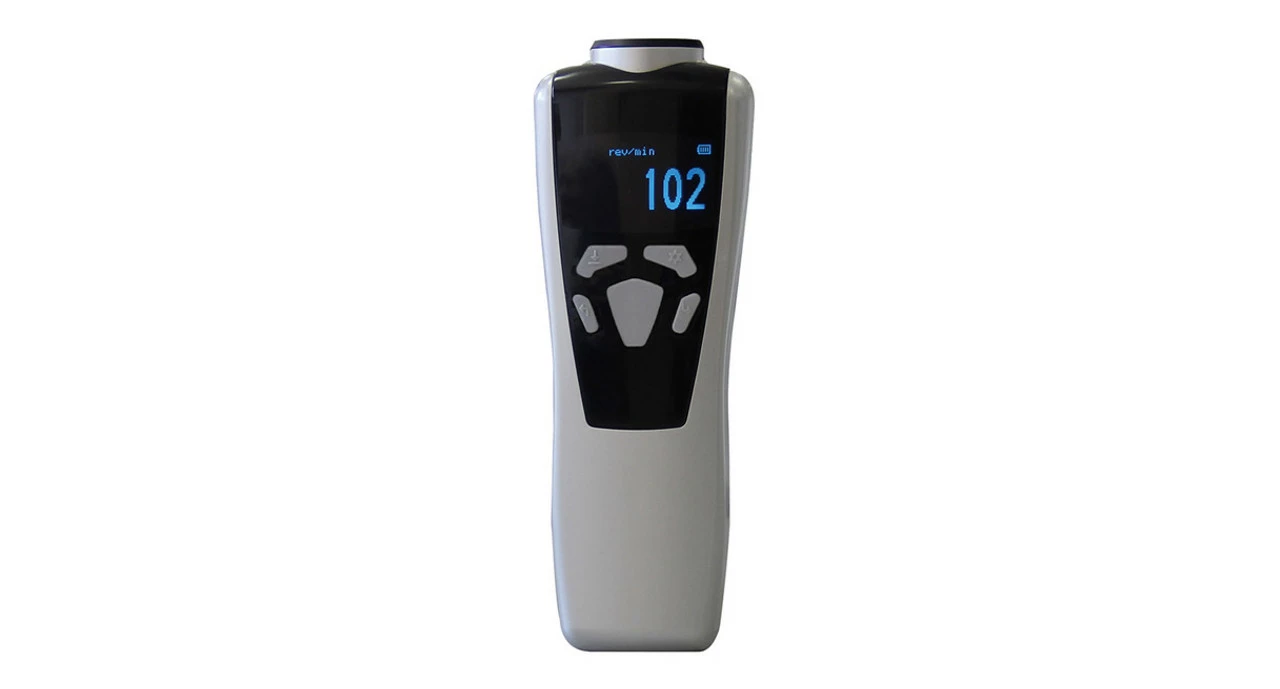

Shimpo DT-2100 Contact/Non-Contact Datalogging Tachometer

Original price was: $328.00.Current price is: $97.99.

SKU: -4576471846201389654 Categories: Accessories, Industrial Equipment

Nature-friendly materials, for a better planet.
Shop with confidence, we guarantee quality.
Quick responses, top-notch service.
Shop with Confidence, Pay Safely

The ergonomic assessment masters at Shimpo are at it again with the Shimpo DT-2100 Contact Non-Contact Datalogging Tachometer. Featuring a rotatable display and multiple modes of datalogging including continuous, single unit, and statistics modes, you’ll have easy readouts of all of your measurements on a blue backlit LED display. The tachometer features a built-in memory and results can be displayed or downloaded to your PC with Windows software (Windows 7 – 10 compatible). It’s compact and lightweight, so it can be mounted on a tripod when the job calls for it.

The DT-2100 Tachometer is ultra-functional with the included 6″ circumference contact adapter utilized in linear rate measurement, which effectively means this is 2 units in 1. The tool provides for convenient switching between non-contact and contact operation with its auto-detect function that instantly recognizes if contact adapter is installed.

The complete kit comes with 2 cone tip adapters, funnel tip adapter, shaft extension, 6″ circumference surface speed wheel, reflective tape, and 2 AA batteries. All pieces are safely housed in a foam-fitted carrying case, so portability to your assessment jobs is easy. Work with the tools you need like the Shimpo DT-2100 Contact Non-Contact Datalogging Tachometer.

Features

Rotatable blue backlit LED Display
Auto-detection of contact adapter
On-screen hi-lo limits for pass/fail analysis
Data storage in selected groups allows testing of multiple machines without mixing data
Built-in memory with USB data output; data logging with continuous, single unit, or statistics modes
Selectable display styles allow for results to be viewed in standard numerical, chart, bar graph or gauge modes
Auto-detect feature instantly identifies if contact adapter is installed, allows rapid changing from contact to non-contact testing
Comparator setting enables upper/lower limit threshold icon indicators to appear; provides immediate pass/fail analysis
Distance measurement function in non-contact mode allows length measuring in applications where making contact with machinery is dangerous
Scale adjustment provides ability to override the data in situations where known offsets are required
Options to view data and statistics on tachometer display or with Windows software

Range	6-99,999 rpm Non-contact 0.8-25,000 rpm Contact
Accuracy	±0.006% of reading ±1 least significant digit
Measuring units	Speed: rpm, m/min, cm/min, inch/min, ft/min, yds/min, rps, m/sec, cm/sec, inch/sec, km/hr, mph Distance: cm, m, km, in, ft, yd
Memory	Continuous Mode: 1000 Single Mode: 100 Statistics Mode: 100
Laser sensing distance	2 inches up to 13.1 feet (5 to 400 cm)
Display	Graphical Blue Light OLED, reversible
Power	2 AA 1.5V batteries or USB
Battery life	Approx. 20 hours with brightness set to 20%
Temperature limits	32º – 113ºF (0º – 45ºC) Non-condensing
Materials	Polycarbonate
Warranty	2 years
Included accessories	2 cone adapters, funnel adapter, 3 1/2″ extension shaft, surface speed wheel (6” circumference), 2 AA batteries, contact adapter and carrying case
