Shimpo Digital Torque Meter [TNP-Series]

Shimpo Digital Torque Meter [TNP-Series] - Image 2

Shimpo Digital Torque Meter [TNP-Series] - Image 3

Shimpo Digital Torque Meter [TNP-Series] - Image 4

Shimpo Digital Torque Meter [TNP-Series] - Image 5

Shimpo Digital Torque Meter [TNP-Series] - Image 6

Shimpo Digital Torque Meter [TNP-Series] - Image 7

Shimpo Digital Torque Meter [TNP-Series] - Image 8

Original price was: $363.00.Current price is: $95.99.

Model

Clear

SKU: -6309751569478898627 Categories: Accessories, Assessment Tools

Nature-friendly materials, for a better planet.
Shop with confidence, we guarantee quality.
Quick responses, top-notch service.
Shop with Confidence, Pay Safely

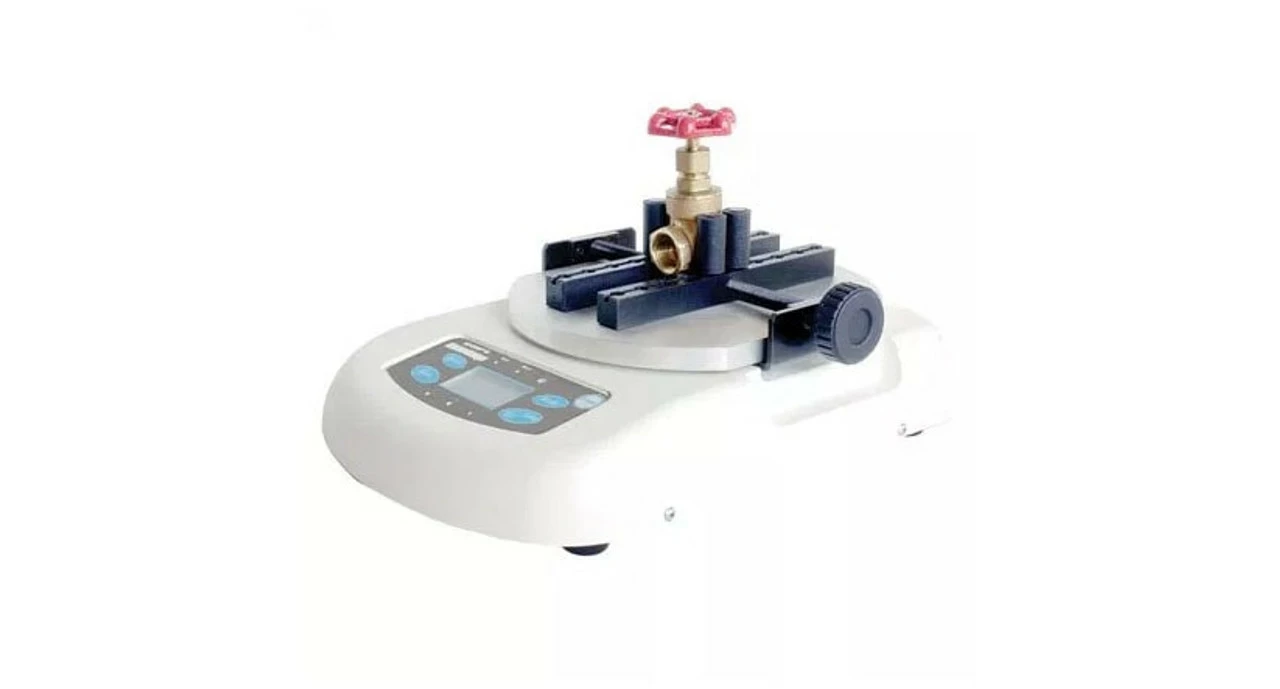

The Shimpo Digital Torque Meter [TNP-Series] is a precision tool designed to measure open and close torques. Knowing the exact torque required to open a bottle cap or tighten a valve can come in handy in a wide variety of applications from an industrial shop to a R&D lab. Create your own quality system on the production line and gain reliable pass/fail data that can be used to determine whether products meet quality standards.

Different measuring modes allow users to capture average, peak opening or peak closing values in both the clock-wise or counter clock-wise directions. The torque meter will store up to 1000 data points, which can be accessed later or downloaded to a PC using the free Digitorq software download.

The Shimpo Digital Torque Meter features cast-aluminum construction to stand up to rugged industrial environments. The simple layout of the keys will allow users to start testing in no time. You can even set up one-touch operation if the same test will be run repeatedly.

When your testing needs call for open and close torque measurements, rely on the precision of the Shimpo Digital Torque Meter.

Features

Precision torque measurements with ± 0.5% F.S. accuracy
Four different models to choose from with capacities ranging from 0.5 N-m up to 10 N-m
Easy-to-read LCD display and intuitive key pad are user friendly
Measure average, peak opening or peak closing values in both clockwise and counter clock-wise directions
Perform large batch testing with a red-green LED indicator which lights up in accordance to programmed tolerances
Large memory capacity stores 1,000 data points
Upload and analyze data with the free Digitorq software download

Dimensions	8.94″ W x 4.96″ T x 12.6″ D
Test sample diameter range	0.39″ – 7.48″ diameter
Measuring range	TNP-0.5: 0 – 50.0 N-cm TNP-2: 0 – 2.0 N-m TNP-5: 0 – 5.0 N-m TNP-10: 0 – 10.0 N-m
Accuracy	± 0.5% F.S.
Units of measure	N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range)
Measure modes	Opening, Closing, Average
Overload protection	150% of full scale
Sampling rate	1000 Hz
Display update rate	0.125, 0.25, or 1 second
Memory	1000 data
Battery life	8 hours continuous use per full charge

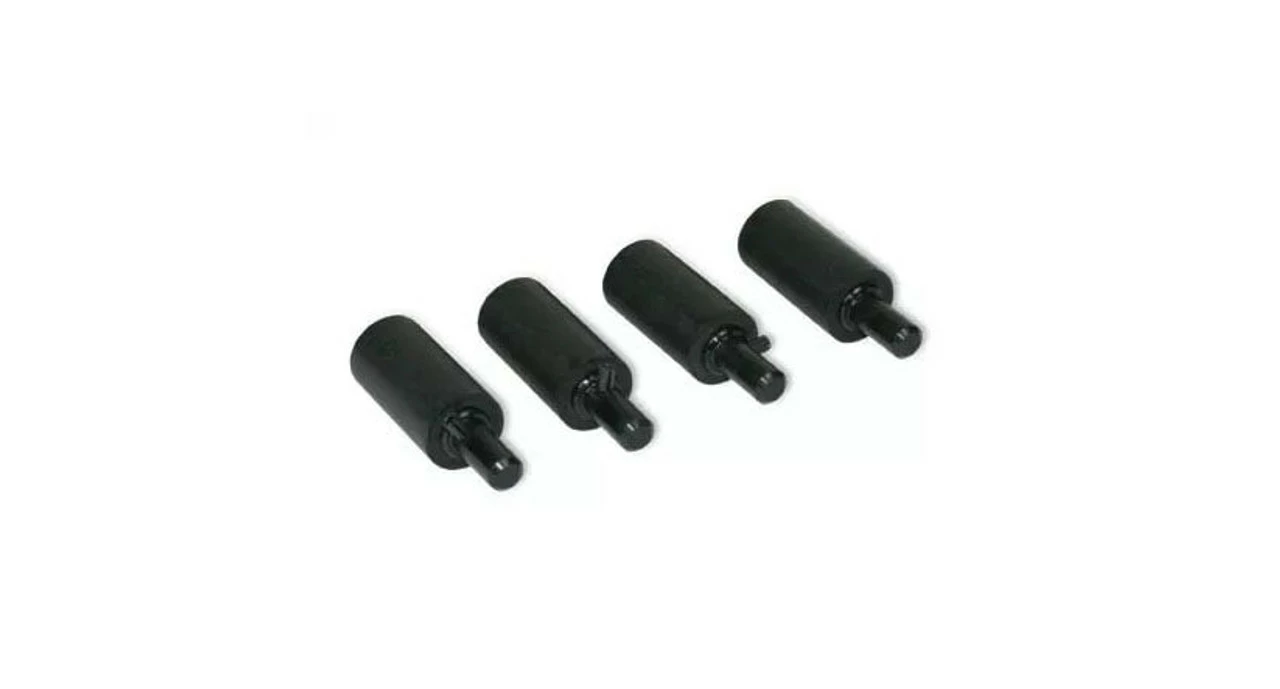

Included accessories	USB cable, 120/240 V AC adapter, set of four 30 mm long torque pins, factory certificate
Warranty	2-year
