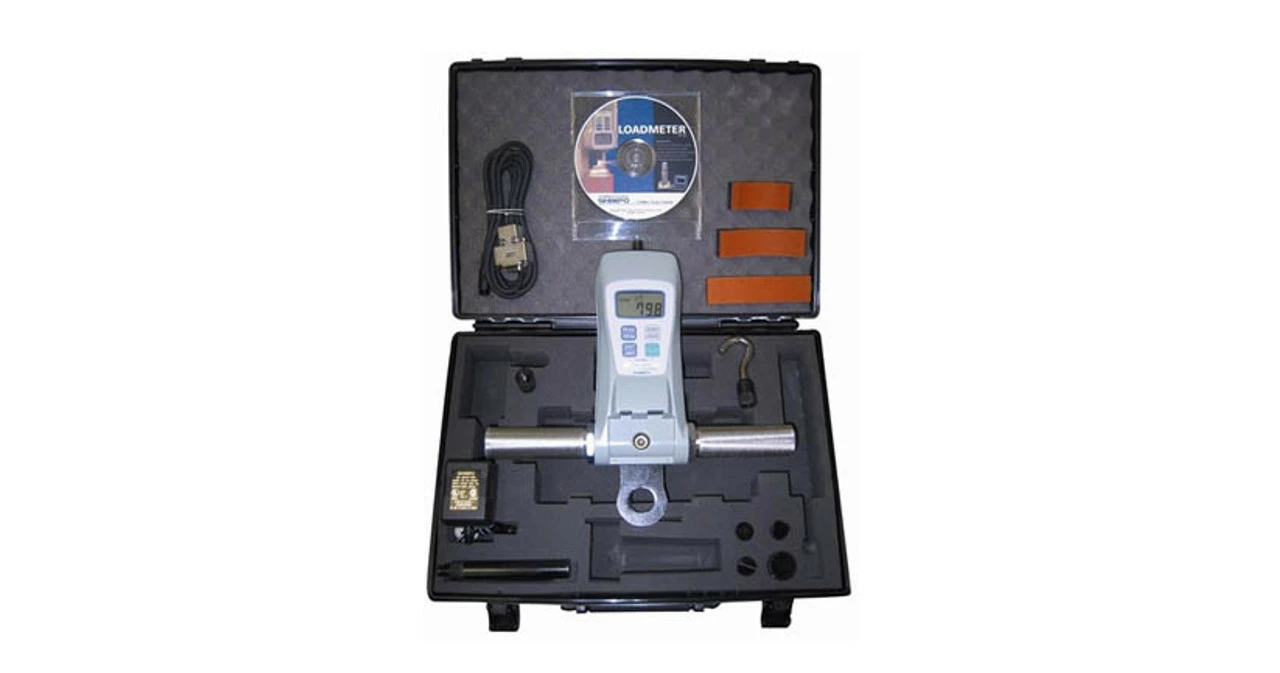

The Shimpo PT Kit FGV/FGE Series delivers your choice of two models of digital force gauges, and two different capacities for each.
Both models feature large, easy-to-read digital displays, and are lightweight, rugged, and portable, making them suitable for isokinetic testing and job task analysis. They come in a handy padded carrying case and a full set of accessories for your convenience. These kits also come with a free NIST traceable certificate of calibration.
Features
- Large LCD display
- Peak hold readings
- Reverse display and keypad
- All-metal construction
- Ergonomically designed
- Free calibration certificate
- Variable units of measure
- Fast update rate
| Capacity | 500 lbs / 250 kg / 2500 N |
| Resolution | 0.1 lb / 0.1 kg / 1 N |
| Accuracy | ±0.2% F.S. + 1/2 digit at 73°F (23°C) |
| Display | Reversible 4-Digit LCD, .47″ high (12mm) with various indicators including tension and low battery indication |
| Average peak and mode | Selectable |
| Display update | Selectable |
| Sampling frequency | 1000/sec |
| Overload capacity | 150% of F.S. |
| Power | Rechargeable Ni-Cad batteries or AC adapter/charger (both included) |
| Auto power shutoff | Yes (not active if adapter/charge is in use) |
| Operating temperature range | 32° – 104°F (0° – 40°C) |
| Dimensions | 8.5″ L x 3.4″ W x 2.2″ H (214 mm x 82 mm x 55 mm) |
| Weight | 2 lb (900 g) |
